Please send RFQ , we will respond immediately.
| Part Number | NZX12A,133 | NZX12X,133 | NZX15A,133 | NZX13A,133 | NZX22A,133 | NZX18A,133 | NZX14A,133 | NZX12B,133 | NZX16A,133 | NZX12C,133 | NZX12D,133 | NZX10A,133 | NZX11A,133 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 11.65 V | 11.74 V | 14.4 V | 12.65 V | 22 V | 18 V | 14 V | 11.85 V | 15.6 V | 12.15 V | 12.45 V | 9.7 V | 10.6 V |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 35 Ohms | 35 Ohms | 40 Ohms | 35 Ohms | 65 Ohms | 55 Ohms | 35 Ohms | 35 Ohms | 45 Ohms | 35 Ohms | 35 Ohms | 25 Ohms | 25 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 8 V | 100 nA @ 8 V | 50 nA @ 10.5 V | 100 nA @ 8 V | 50 nA @ 15.4 V | 50 nA @ 12.6 V | 50 nA @ 9.8 V | 100 nA @ 8 V | 50 nA @ 11.2 V | 100 nA @ 8 V | 100 nA @ 8 V | 200 nA @ 7 V | 100 nA @ 8 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA |
| Operating Temperature | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

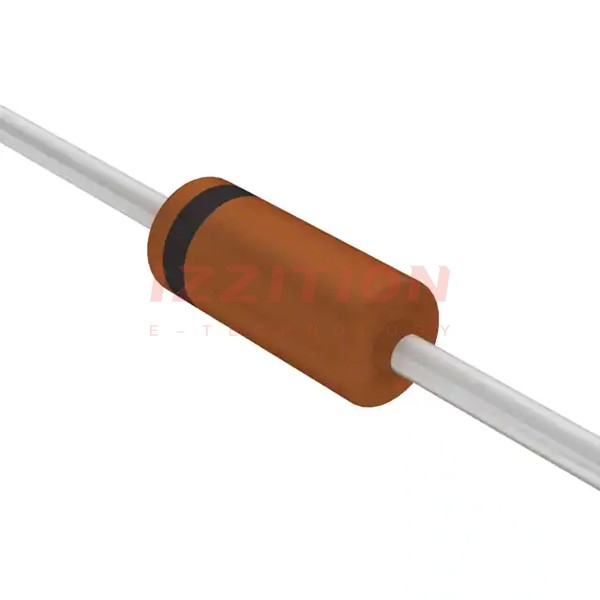

| Package / Case | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial |
| Supplier Device Package | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 |
