Nexperia USA Inc.-NX7002BKHH - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	350mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	2.8Ohm @ 200mA, 10V
Vgs(th) (Max) @ Id:	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	1 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	22.2 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	380mW (Ta), 2.8W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	DFN0606-3
Package / Case:	3-XFDFN

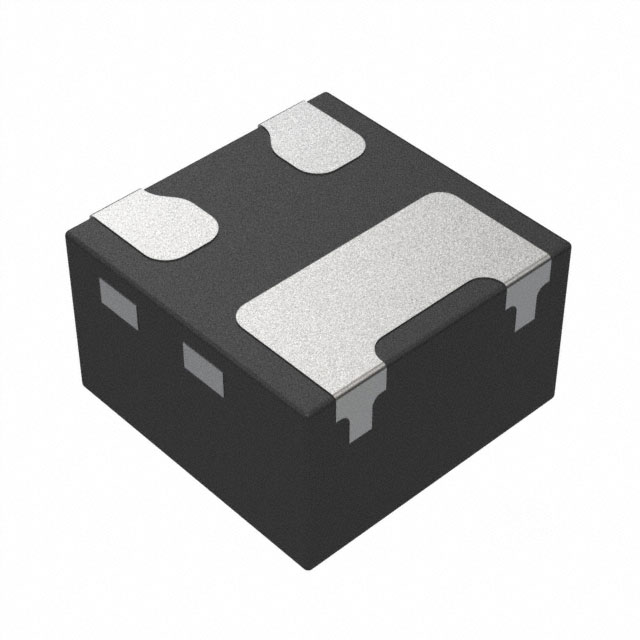

Nexperia USA Inc. NX7002BKHH
