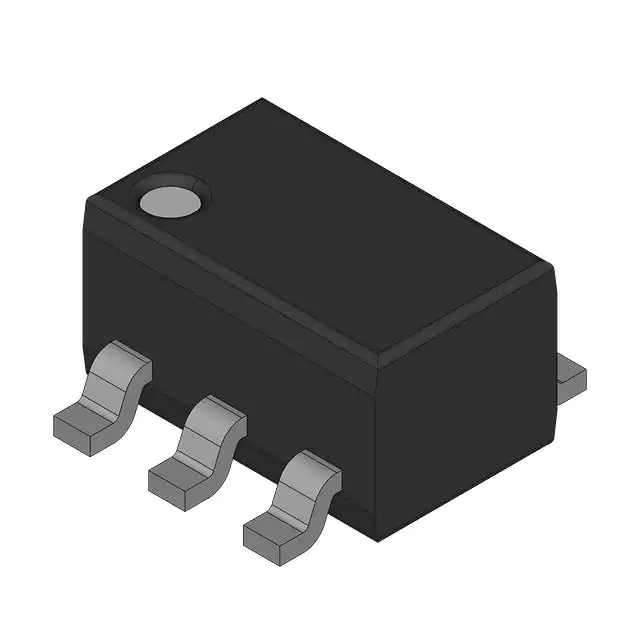

| Part Number | NHUMD3X | NHUMD9X | NHUMD13X | NHUMD2X | NHUMD3F |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 80V | 80V | 80V | 80V | 80V |
| Resistor - Base (R1) | 10kOhms | 10kOhms | 4.7kOhms | 22kOhms | 10kOhms |
| Resistor - Emitter Base (R2) | 10kOhms | 47kOhms | 47kOhms | 22kOhms | 10kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 10mA, 5V | 100 @ 10mA, 5V | 100 @ 10mA, 5V | 70 @ 10mA, 5V | 50 @ 10mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 500µA, 10mA | 100mV @ 500µA, 10mA | 100mV @ 500µA, 10mA | 100mV @ 500µA, 10mA | 100mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 100nA | 100nA | 100nA | 100nA | 100nA |
| Frequency - Transition | 170MHz, 150MHz | 170MHz, 150MHz | 170MHz, 150MHz | 170MHz, 150MHz | 170MHz, 150MHz |
| Power - Max | 350mW | 350mW | 350mW | 350mW | 350mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | 6-TSSOP | 6-TSSOP | 6-TSSOP | 6-TSSOP | 6-TSSOP |
