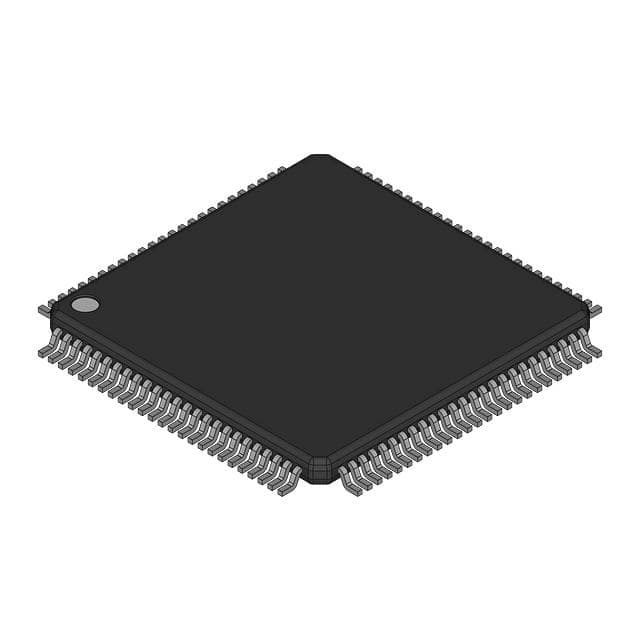

| Part Number | MKL36Z256VLL4 | MKL36Z256VLL4R | MKL46Z256VLL4 | MKL26Z256VLL4 | MKL36Z256VLH4 |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz |
| Connectivity | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART, USB, USB OTG | I²C, LINbus, SPI, UART/USART, USB, USB OTG | I²C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, LVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, LVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 84 | 84 | 84 | 80 | 50 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V |
| Data Converters | A/D - 16bit; D/A - 12bit | A/D - 16bit; D/A - 12bit | A/D - 16bit; D/A - 12bit | A/D - 16bit; D/A - 12bit | A/D - 16bit; D/A - 12bit |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-LQFP | 100-LQFP | 100-LQFP | 100-LQFP | 64-LQFP |
| Supplier Device Package | 100-LQFP (14x14) | 100-LQFP (14x14) | 100-LQFP (14x14) | 100-LQFP (14x14) | 64-LQFP (10x10) |
