Please send RFQ , we will respond immediately.

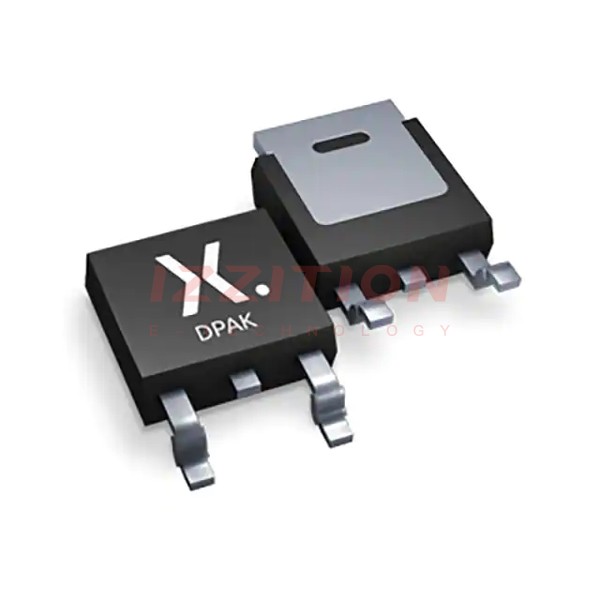

| Part Number | MJD44H11J | MJD45H11J | MJD44H11 | MJD44H11AJ | MJD44H11G |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | onsemi | Nexperia USA Inc. | onsemi |
| Product Status | Active | Active | Obsolete | Active | Active |
| Transistor Type | NPN | PNP | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 8 A | 8 A | 8 A | 8 A | 8 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V | 80 V | 80 V | 80 V | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 400mA, 8A | 1V @ 400mA, 8A | 1V @ 400mA, 8A | 1V @ 400mA, 8A | 1V @ 400mA, 8A |
| Current - Collector Cutoff (Max) | 1µA | 1µA | 1µA | 1µA | 1µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 2A, 1V | 60 @ 2A, 1V | 60 @ 2A, 1V | 60 @ 2A, 1V | 40 @ 4A, 1V |
| Power - Max | 1.75 W | 1.75 W | 20 W | 1.75 W | 1.75 W |
| Frequency - Transition | 160MHz | 80MHz | 85MHz | 160MHz | 85MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | - | 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK | DPAK | DPAK | DPAK | DPAK |
