| Part Number | MJD32CAJ | MJD32CJ | MJD31CAJ |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| Transistor Type | PNP | PNP | NPN |
| Current - Collector (Ic) (Max) | 3 A | 3 A | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V | 100 V | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 1.2V @ 375mA, 3A | 1.2V @ 375mA, 3A | 1.2V @ 375mA, 3A |
| Current - Collector Cutoff (Max) | 1µA | 1µA | 1µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 25 @ 1A, 4V | 25 @ 1A, 4V | 25 @ 1A, 4V |
| Power - Max | 1.6 W | 1.6 W | 1.6 W |
| Frequency - Transition | 3MHz | 3MHz | 3MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

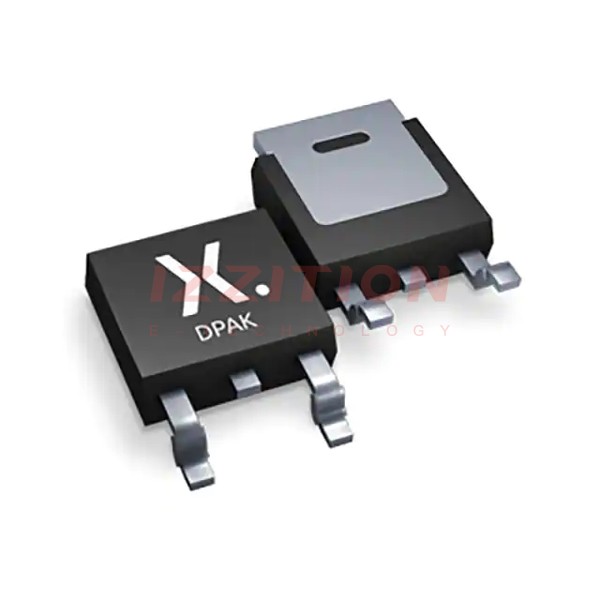

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK | DPAK | DPAK |
