| Part Number | MJD31CJ | MJD32CJ | MJD41CJ | MJD31C | MJD31C1 | MJD31CAJ | MJD31CG |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | STMicroelectronics | onsemi | Nexperia USA Inc. | onsemi |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Active | Active |
| Transistor Type | NPN | PNP | NPN | NPN | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 3 A | 3 A | 6 A | 3 A | 3 A | 3 A | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 1.2V @ 375mA, 3A | 1.2V @ 375mA, 3A | 1.5V @ 600mA, 6A | 1.2V @ 375mA, 3A | 1.2V @ 375mA, 3A | 1.2V @ 375mA, 3A | 1.2V @ 375mA, 3A |
| Current - Collector Cutoff (Max) | 1µA | 1µA | 1µA | 50µA | 50µA | 1µA | 50µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 25 @ 1A, 4V | 25 @ 1A, 4V | 30 @ 300µA, 4V | 10 @ 3A, 4V | 10 @ 3A, 4V | 25 @ 1A, 4V | 10 @ 3A, 4V |
| Power - Max | 1.6 W | 1.6 W | 1.6 W | 15 W | 1.56 W | 1.6 W | 1.56 W |
| Frequency - Transition | 3MHz | 3MHz | 3MHz | - | 3MHz | 3MHz | 3MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | -65°C ~ 150°C (TJ) | 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount | Surface Mount |

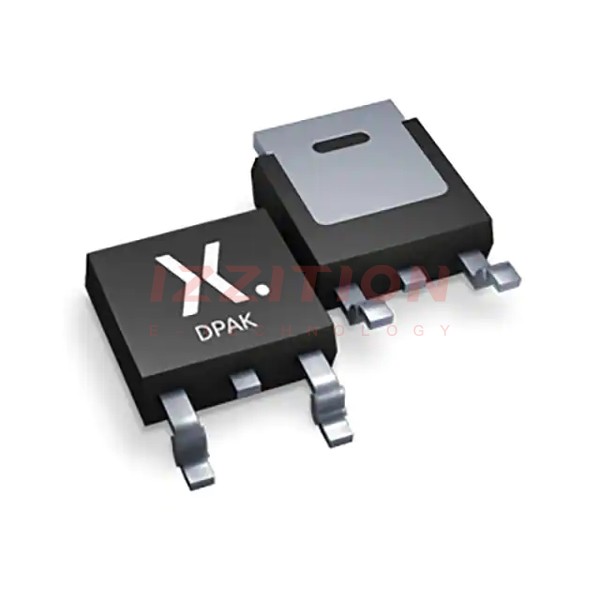

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-251-3 Short Leads, IPak, TO-251AA | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK | DPAK | DPAK | DPAK | I-PAK | DPAK | DPAK |
