Please send RFQ , we will respond immediately.

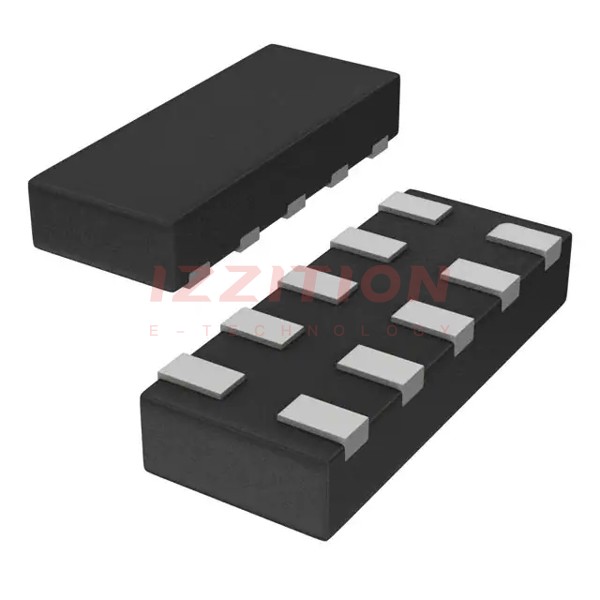

| Part Number | IP4294CZ10-TBR,115 | IP4284CZ10-TBR,115 | IP4292CZ10-TBR,115 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| Type | Steering (Rail to Rail) | Steering (Rail to Rail) | Steering (Rail to Rail) |
| Unidirectional Channels | 4 | - | 4 |
| Bidirectional Channels | - | 4 | - |
| Voltage - Reverse Standoff (Typ) | 5.5V | - | 5.5V |
| Voltage - Breakdown (Min) | 6V | 6V | 6V |
| Voltage - Clamping (Max) @ Ipp | 4.1V | 8V (Typ) | 4V (Typ) |
| Current - Peak Pulse (10/1000µs) | 4A (8/20µs) | - | 4A (8/20µs) |
| Power - Peak Pulse | - | - | - |
| Power Line Protection | Yes | No | Yes |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-XFDFN | 10-XFDFN | 10-XFDFN |
| Supplier Device Package | DFN2510A-10 | DFN2510A-10 | DFN2510A-10 |
