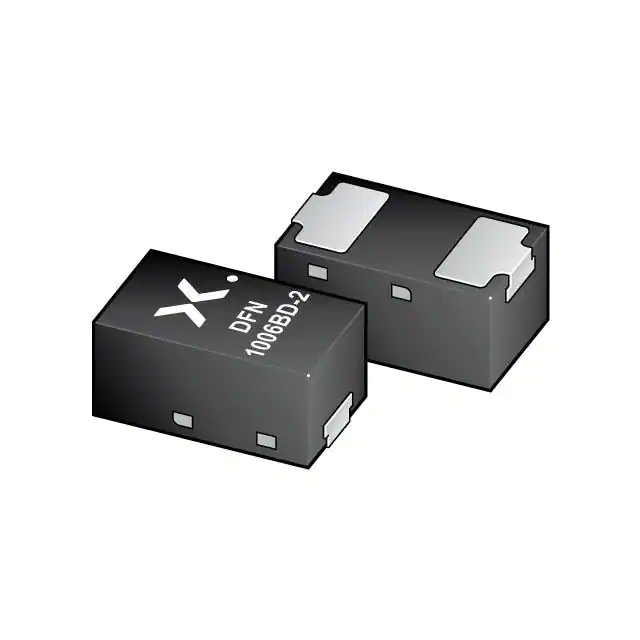

| Part Number | BZX8850S-C22-QYL | BZX8850S-C24-QYL | BZX8850S-C2V2-QYL | BZX8850S-C27-QYL | BZX8850S-C62-QYL | BZX8850S-C12-QYL | BZX8850S-C20-QYL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 22 V | 24 V | 2.2 V | 27 V | 62 V | 12 V | 20 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW |
| Impedance (Max) (Zzt) | 55 Ohms | 70 Ohms | 100 Ohms | 80 Ohms | 215 Ohms | 25 Ohms | 55 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 16.7 V | 50 nA @ 18.2 V | 4 µA @ 1 V | 50 nA @ 20.4 V | 50 nA @ 43.4 V | 50 nA @ 9.1 V | 50 nA @ 15.2 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 |
| Supplier Device Package | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 |
