| Part Number | BZX884S-C6V8-QYL | BZX884S-B6V8-QYL | BZX884S-C68-QYL | BZX884S-C6V2-QYL |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 6.8 V | 6.8 V | 68 V | 6.2 V |
| Tolerance | ±5.88% | ±2.06% | ±2.06% | ±6.45% |
| Power - Max | 365 mW | 365 mW | 365 mW | 365 mW |
| Impedance (Max) (Zzt) | 15 Ohms | 15 Ohms | 240 Ohms | 10 Ohms |
| Current - Reverse Leakage @ Vr | 2 µA @ 4 V | 2 µA @ 4 V | 50 nA @ 47.6 V | 3 µA @ 4 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

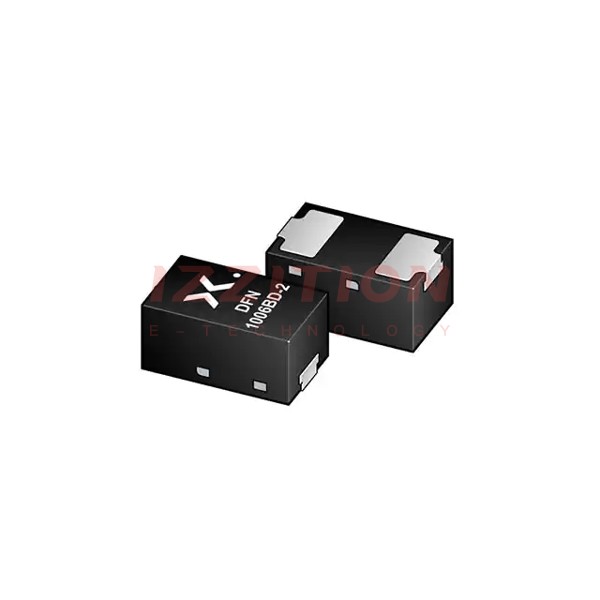

| Package / Case | SOD-882 | SOD-882 | SOD-882 | SOD-882 |
| Supplier Device Package | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 |
