| Part Number | BZX884S-C4V3-QYL | BZX884S-C4V7-QYL | BZX884S-B4V3-QYL | BZX884S-C3V3-QYL | BZX884S-C43-QYL |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 4.3 V | 4.7 V | 4.3 V | 3.3 V | 43 V |
| Tolerance | ±6.98% | ±6.38% | ±2.09% | ±6.06% | ±2.09% |
| Power - Max | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW |
| Impedance (Max) (Zzt) | 90 Ohms | 80 Ohms | 90 Ohms | 95 Ohms | 150 Ohms |
| Current - Reverse Leakage @ Vr | 3 µA @ 1 V | 3 µA @ 2 V | 3 µA @ 1 V | 5 µA @ 1 V | 50 nA @ 30.1 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

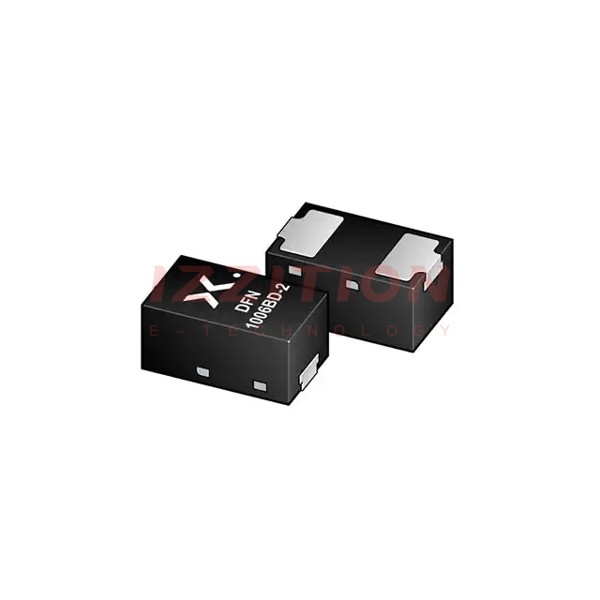

| Package / Case | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 |
| Supplier Device Package | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 |
