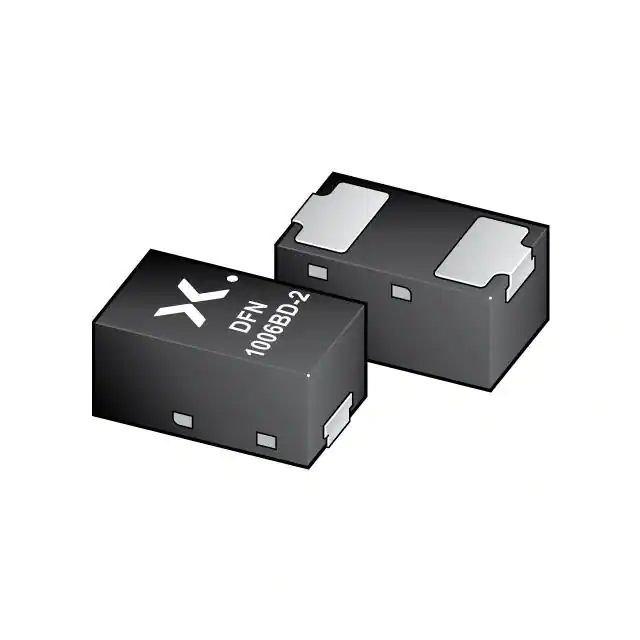

| Part Number | BZX884S-C12YL | BZX884S-C62YL | BZX884S-C15YL | BZX884S-C22YL | BZX884S-C13YL | BZX884S-C18YL | BZX884S-C16YL | BZX884S-B12YL | BZX884S-C10YL | BZX884S-C11YL |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 12.05 V | 62 V | 14.7 V | 22.05 V | 13.25 V | 17.95 V | 16.2 V | 12 V | 10 V | 11 V |
| Tolerance | ±5.39% | ±6.45% | ±6.12% | ±5.67% | ±6.42% | ±6.41% | ±5.56% | ±1.67% | ±6% | ±5.45% |
| Power - Max | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW |
| Impedance (Max) (Zzt) | 25 Ohms | 215 Ohms | 30 Ohms | 55 Ohms | 30 Ohms | 45 Ohms | 40 Ohms | 25 Ohms | 20 Ohms | 20 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 8 V | 50 nA @ 43.4 V | 50 nA @ 10.5 V | 50 nA @ 15.4 V | 100 nA @ 8 V | 50 nA @ 12.6 V | 50 nA @ 11.2 V | 100 nA @ 8 V | 200 nA @ 7 V | 100 nA @ 8 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 |
| Supplier Device Package | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 |
