| Part Number | BZX884S-C10-QYL | BZX884S-C16-QYL | BZX884S-C11-QYL | BZX884S-C13-QYL | BZX884S-C18-QYL | BZX884S-C12-QYL | BZX884S-C20-QYL | BZX884S-C30-QYL | BZX884S-C15-QYL | BZX884S-B10-QYL |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 10 V | 16 V | 11 V | 13 V | 18 V | 12 V | 20 V | 30 V | 15 V | 10 V |
| Tolerance | ±2% | ±1.88% | ±1.82% | ±2.31% | ±2.22% | ±1.67% | ±2% | ±2% | ±2% | ±2% |
| Power - Max | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW |
| Impedance (Max) (Zzt) | 20 Ohms | 40 Ohms | 20 Ohms | 30 Ohms | 45 Ohms | 25 Ohms | 55 Ohms | 80 Ohms | 30 Ohms | 20 Ohms |
| Current - Reverse Leakage @ Vr | 200 nA @ 7 V | 50 nA @ 11.2 V | 100 nA @ 8 V | 100 nA @ 8 V | 50 nA @ 12.6 V | 100 nA @ 8 V | 50 nA @ 14 V | 50 nA @ 21 V | 50 nA @ 10.5 V | 200 nA @ 7 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 |

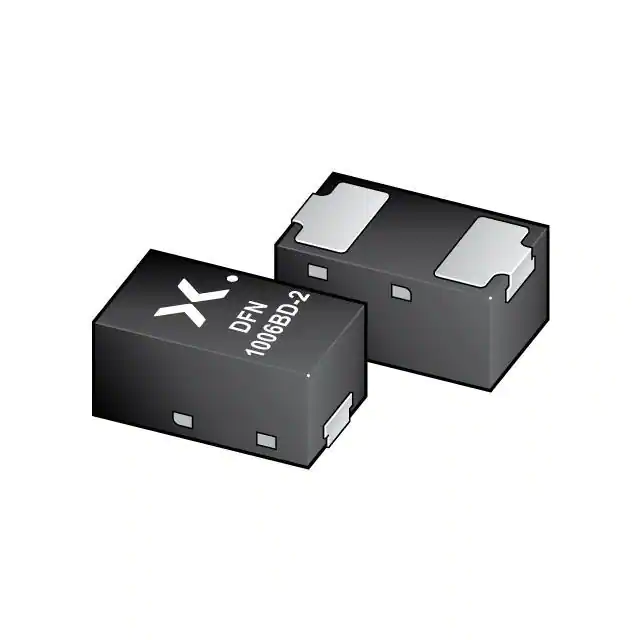

| Supplier Device Package | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 |
