| Part Number | BZX884S-B20-QYL | BZX884S-C20-QYL | BZX884S-B27-QYL | BZX884S-B22-QYL | BZX884S-B30-QYL | BZX884S-B24-QYL | BZX884S-B10-QYL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 20 V | 20 V | 27 V | 22 V | 30 V | 24 V | 10 V |
| Tolerance | ±2% | ±2% | ±1.85% | ±1.82% | ±2% | ±2.08% | ±2% |
| Power - Max | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW | 365 mW |
| Impedance (Max) (Zzt) | 55 Ohms | 55 Ohms | 80 Ohms | 55 Ohms | 80 Ohms | 70 Ohms | 20 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 14 V | 50 nA @ 14 V | 50 nA @ 18.9 V | 50 nA @ 15.4 V | 50 nA @ 21 V | 50 nA @ 16.8 V | 200 nA @ 7 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

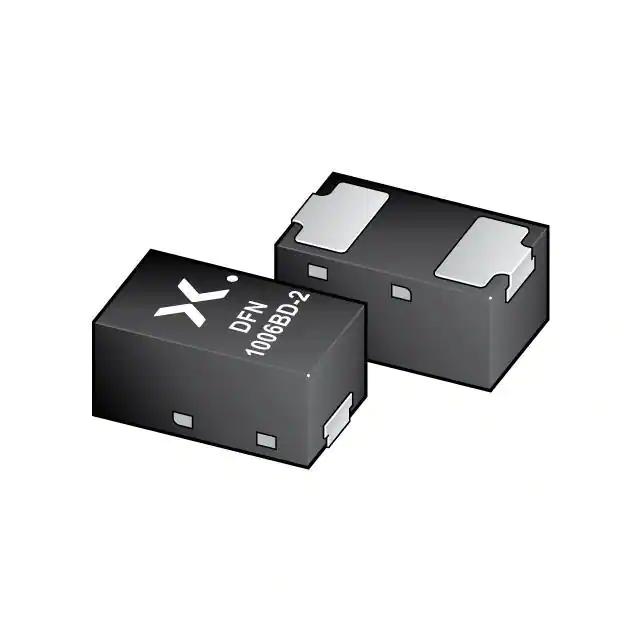

| Package / Case | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 | SOD-882 |
| Supplier Device Package | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 | DFN1006BD-2 |
