Nexperia USA Inc.-BZX884-C22,315 - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	BZX884-C22,315	BZX884-C62,315	BZX884-C27,315	BZX884-C24,315	BZX884-B22,315	BZX884-C12,315	BZX884-C20,315
Manufacturer	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.
Product Status	Active	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	22 V	62 V	27 V	24 V	22 V	12 V	20 V
Tolerance	±5%	±5%	±5%	±5%	±2%	±5%	±5%
Power - Max	250 mW	250 mW	250 mW	250 mW	250 mW	250 mW	250 mW
Impedance (Max) (Zzt)	55 Ohms	215 Ohms	80 Ohms	70 Ohms	55 Ohms	10 Ohms	55 Ohms
Current - Reverse Leakage @ Vr	50 nA @ 15.4 V	50 nA @ 43.4 V	50 nA @ 18.9 V	50 nA @ 16.8 V	50 nA @ 15.4 V	100 nA @ 8 V	50 nA @ 14 V
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA
Operating Temperature	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SOD-882	SOD-882	SOD-882	SOD-882	SOD-882	SOD-882	SOD-882
Supplier Device Package	DFN1006-2	DFN1006-2	DFN1006-2	DFN1006-2	DFN1006-2	DFN1006-2	DFN1006-2

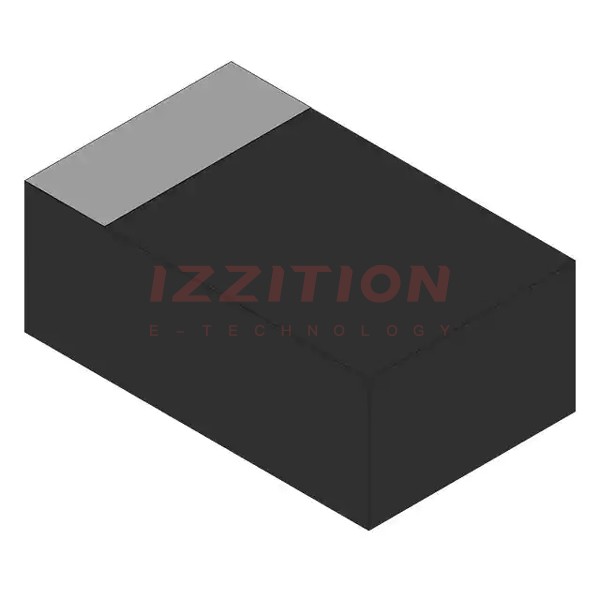

Nexperia USA Inc. BZX884-C22,315
