BZX84W-B15X
  • Share:

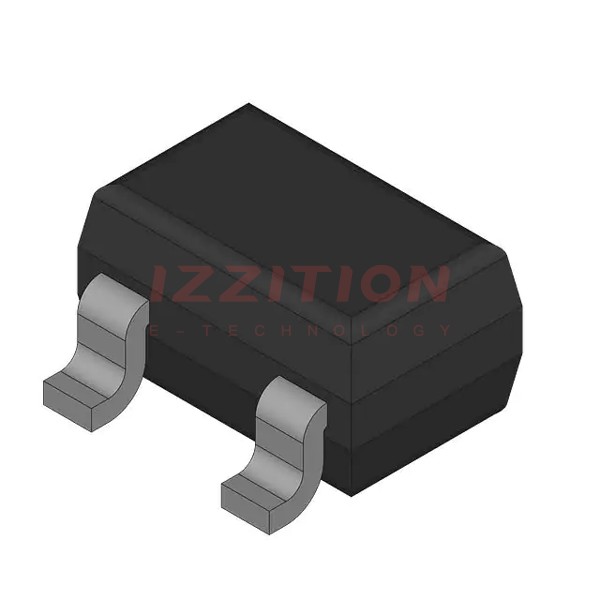

Nexperia USA Inc. BZX84W-B15X

Manufacturer No:
BZX84W-B15X
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Datasheet:
BZX84W-B15X Datasheet
ECAD Model:
-
Description:
BZX84W SERIES - VOLTAGE REGULATO
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Voltage - Zener (Nom) (Vz):15 V
Tolerance:±2%
Power - Max:275 mW
Impedance (Max) (Zzt):30 Ohms
Current - Reverse Leakage @ Vr:50 nA @ 10.5 V
Voltage - Forward (Vf) (Max) @ If:900 mV @ 10 mA
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-70, SOT-323
Supplier Device Package:SOT-323
0 Remaining View Similar

In Stock

$0.02
34,482

Please send RFQ , we will respond immediately.

Similar Products

Part Number BZX84W-B15X BZX84W-B75X   BZX84W-C15X   BZX84W-B16X   BZX84W-B18X   BZX84W-B10X   BZX84W-B11X   BZX84W-B12X   BZX84W-B13X   BZX84W-B15F
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active Active Active Active Active Active Active Active Active
Voltage - Zener (Nom) (Vz) 15 V 75 V 15 V 16 V 18 V 10 V 11 V 12 V 13 V 15 V
Tolerance ±2% ±2% ±5% ±2% ±2% ±2% ±2% ±2% ±2% ±2%
Power - Max 275 mW 275 mW 275 mW 275 mW 275 mW 275 mW 275 mW 275 mW 275 mW 275 mW
Impedance (Max) (Zzt) 30 Ohms 255 Ohms 30 Ohms 40 Ohms 45 Ohms 20 Ohms 20 Ohms 25 Ohms 30 Ohms 30 Ohms
Current - Reverse Leakage @ Vr 50 nA @ 10.5 V 50 nA @ 52.2 V 50 nA @ 10.5 V - - 200 nA @ 7 V 100 nA @ 8 V 100 nA @ 8 V 100 nA @ 8 V 50 nA @ 10.5 V
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA 900 mV @ 10 mA 900 mV @ 10 mA 900 mV @ 10 mA 900 mV @ 10 mA 900 mV @ 10 mA 900 mV @ 10 mA 900 mV @ 10 mA 900 mV @ 10 mA 900 mV @ 10 mA
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case SC-70, SOT-323 SC-70, SOT-323 SC-70, SOT-323 SC-70, SOT-323 SC-70, SOT-323 SC-70, SOT-323 SC-70, SOT-323 SC-70, SOT-323 SC-70, SOT-323 SC-70, SOT-323
Supplier Device Package SOT-323 SOT-323 SOT-323 SOT-323 SOT-323 SOT-323 SOT-323 SOT-323 SOT-323 SOT-323
