Please send RFQ , we will respond immediately.

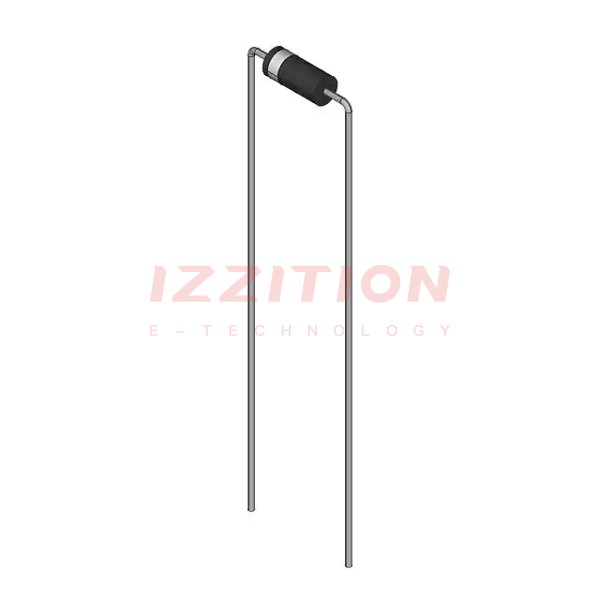

| Part Number | BZX79-C16,133 | BZX79-C18,133 | BZX79-C16,143 | BZX79-C36,133 | BZX79-C56,133 | BZX79-C10,133 | BZX79-C11,133 | BZX79-C12,133 | BZX79-C13,133 | BZX79-C15,133 | BZX79-C16,113 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 16 V | 18 V | 16 V | 36 V | 56 V | 10 V | 11 V | 12 V | 13 V | 15 V | 16 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 400 mW | 400 mW | 400 mW | 400 mW | 400 mW | 400 mW | 400 mW | 400 mW | 400 mW | 400 mW | 400 mW |
| Impedance (Max) (Zzt) | 40 Ohms | 45 Ohms | 40 Ohms | 90 Ohms | 200 Ohms | 20 Ohms | 20 Ohms | 25 Ohms | 30 Ohms | 30 Ohms | 40 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 11.2 V | 50 nA @ 12.6 V | 50 nA @ 700 mV | 50 nA @ 25.2 V | 50 nA @ 39.2 V | 200 nA @ 7 V | 100 nA @ 8 V | 100 nA @ 8 V | 100 nA @ 8 V | 50 nA @ 10.5 V | 50 nA @ 700 mV |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial |
| Supplier Device Package | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 |
