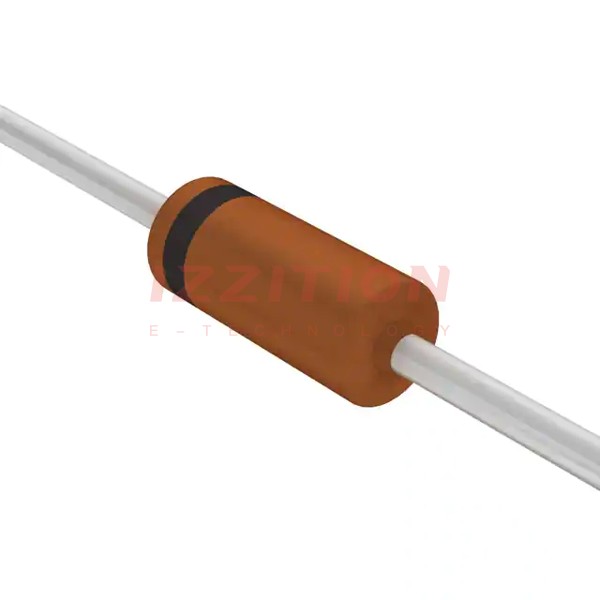

| Part Number | BZX79-B7V5,133 | BZX79-B7V5,143 | BZX79-B75,133 | BZX79-B7V5,113 |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 7.5 V | 7.5 V | 75 V | 7.5 V |
| Tolerance | ±2% | ±2% | ±2% | ±2% |
| Power - Max | 400 mW | 400 mW | 400 mW | 400 mW |
| Impedance (Max) (Zzt) | 15 Ohms | 15 Ohms | 255 Ohms | 15 Ohms |
| Current - Reverse Leakage @ Vr | 1 µA @ 5 V | 1 µA @ 5 V | 50 nA @ 52.5 V | 1 µA @ 5 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial |
| Supplier Device Package | ALF2 | ALF2 | ALF2 | ALF2 |
