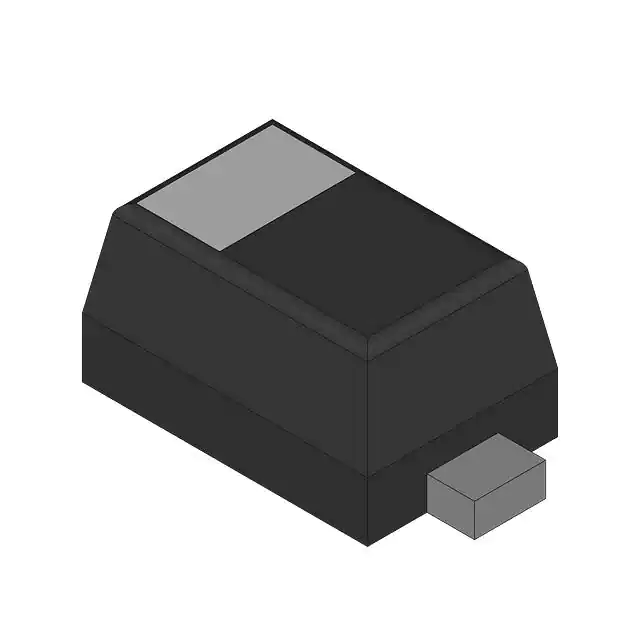

| Part Number | BZX585-B56,115 | BZX585-B5V6,115 | BZX585-C56,115 | BZX585-B16,115 | BZX585-B36,115 | BZX585-B51,115 |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 56 V | 5.6 V | 56 V | 16 V | 36 V | 51 V |
| Tolerance | ±2% | ±2% | ±5% | ±2% | ±2% | ±2% |
| Power - Max | 300 mW | 300 mW | 300 mW | 300 mW | 300 mW | 300 mW |
| Impedance (Max) (Zzt) | 200 Ohms | 40 Ohms | 200 Ohms | 40 Ohms | 90 Ohms | 180 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 39.2 V | 1 µA @ 2 V | 50 nA @ 39.2 V | 50 nA @ 11.2 V | 50 nA @ 25.2 V | 50 nA @ 35.7 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA |
| Operating Temperature | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C (TA) | -65°C ~ 150°C | -65°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 | SOD-523 | SOD-523 | SOD-523 | SOD-523 | SOD-523 |
