Please send RFQ , we will respond immediately.

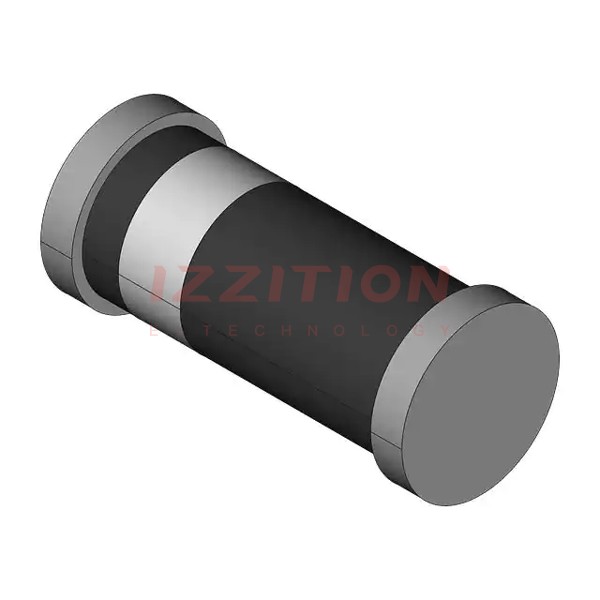

| Part Number | BZV55-C62,115 | BZV55-C6V2,115 | BZV55-C68,115 | BZV55-C62,135 | BZV55-B62,115 | BZV55-C12,115 | BZV55-C22,115 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 62 V | 6.2 V | 68 V | 62 V | 62 V | 12 V | 22 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±2% | ±5% | ±5% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 215 Ohms | 10 Ohms | 240 Ohms | 215 Ohms | 215 Ohms | 25 Ohms | 55 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 43.4 V | 3 µA @ 4 V | 50 nA @ 47.6 V | 50 nA @ 43.4 V | 50 nA @ 43.4 V | 100 nA @ 8 V | 50 nA @ 15.4 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | LLDS; MiniMelf | LLDS; MiniMelf | LLDS; MiniMelf | LLDS; MiniMelf | LLDS; MiniMelf | LLDS; MiniMelf | LLDS; MiniMelf |
