Please send RFQ , we will respond immediately.

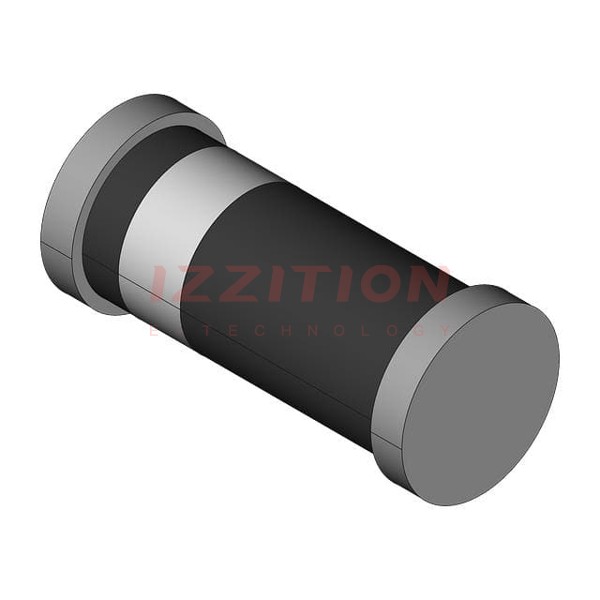

| Part Number | BZV55-B3V,115 | BZV55-B3V6,115 | BZV55-B3V0,115 | BZV55-B3V3,115 | BZV55-B3V9,115 | BZV55-B30,115 | BZV55-B33,115 | BZV55-B36,115 | BZV55-B39,115 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | - | 3.6 V | 3 V | 3.3 V | 3.9 V | 30 V | 33 V | 36 V | 39 V |
| Tolerance | - | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Power - Max | - | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | - | 90 Ohms | 95 Ohms | 95 Ohms | 90 Ohms | 80 Ohms | 80 Ohms | 90 Ohms | 130 Ohms |
| Current - Reverse Leakage @ Vr | - | 5 µA @ 1 V | 10 µA @ 1 V | 5 µA @ 1 V | 3 µA @ 1 V | 50 nA @ 700 mV | 50 nA @ 23.1 V | 50 nA @ 700 mV | 50 nA @ 27.3 V |
| Voltage - Forward (Vf) (Max) @ If | - | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | - | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | - | LLDS; MiniMelf | LLDS; MiniMelf | LLDS; MiniMelf | LLDS; MiniMelf | LLDS; MiniMelf | LLDS; MiniMelf | LLDS; MiniMelf | LLDS; MiniMelf |
