| Part Number | BZT52H-C16,115 | BZT52H-C18,115 | BZT52H-C36,115 | BZT52H-C56,115 | BZT52H-B16,115 | BZT52H-C10,115 | BZT52H-C11,115 | BZT52H-C12,115 | BZT52H-C13,115 | BZT52H-C15,115 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 16 V | 18 V | 36 V | 56 V | 16 V | 10 V | 11 V | 12 V | 13 V | 15 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±2% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 375 mW | 375 mW | 375 mW | 375 mW | 375 mW | 375 mW | 375 mW | 375 mW | 375 mW | 375 mW |
| Impedance (Max) (Zzt) | 20 Ohms | 20 Ohms | 60 Ohms | 120 Ohms | 20 Ohms | 10 Ohms | 10 Ohms | 10 Ohms | 10 Ohms | 15 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 11.2 V | 50 nA @ 12.6 V | 50 nA @ 25.2 V | 50 nA @ 39.2 V | 50 nA @ 11.2 V | 200 nA @ 7 V | 100 nA @ 8 V | 100 nA @ 8 V | 100 nA @ 8 V | 50 nA @ 10.5 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

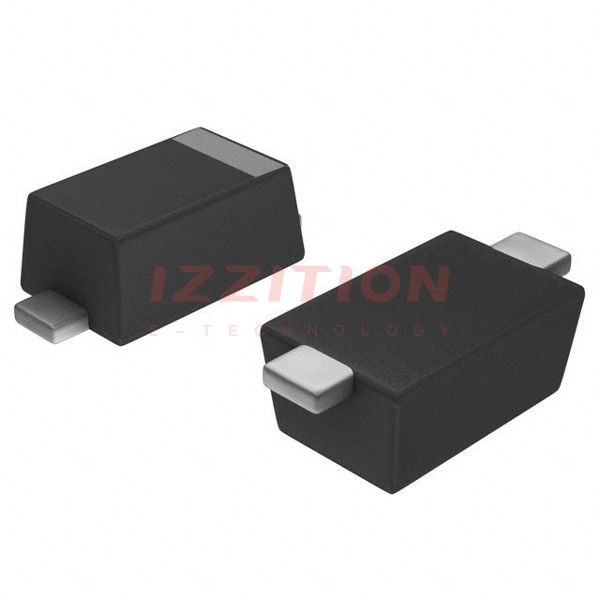

| Package / Case | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F |
| Supplier Device Package | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F |
