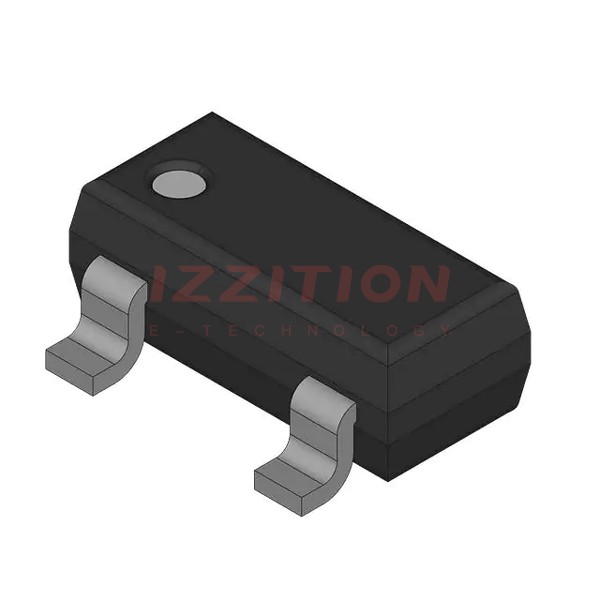

| Part Number | BZB84-C56,215 | BZB84-C5V6,215 | BZB84-B56,215 | BZB84-C16,215 | BZB84-C36,215 | BZB84-C51,215 |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Configuration | 1 Pair Common Anode | 1 Pair Common Anode | 1 Pair Common Anode | 1 Pair Common Anode | 1 Pair Common Anode | 1 Pair Common Anode |
| Voltage - Zener (Nom) (Vz) | 56 V | 5.6 V | 56 V | 16 V | 36 V | 51 V |
| Tolerance | ±5% | ±5% | ±2% | ±5% | ±5% | ±5% |
| Power - Max | 300 mW | 300 mW | 300 mW | 300 mW | 300 mW | 300 mW |
| Impedance (Max) (Zzt) | 200 Ohms | 40 Ohms | 200 Ohms | 40 Ohms | 90 Ohms | 180 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 39.2 V | 1 µA @ 2 V | 50 nA @ 39.2 V | 50 nA @ 11.2 V | 50 nA @ 25.2 V | 50 nA @ 35.7 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | TO-236AB | TO-236AB | SOT-23 | TO-236AB | TO-236AB | TO-236AB |
