Please send RFQ , we will respond immediately.

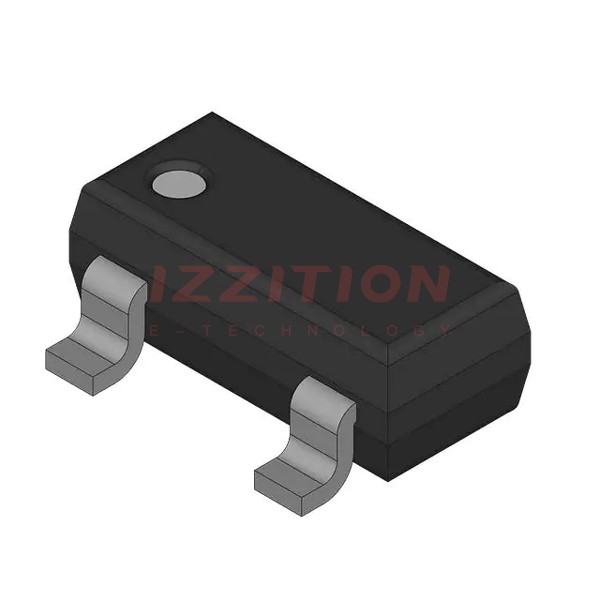

| Part Number | BZB84-B12,215 | BZB84-B22,215 | BZB84-B62,215 | BZB84-C12,215 | BZB84-B13,215 | BZB84-B15,215 | BZB84-B16,215 | BZB84-B18,215 | BZB84-B10,215 | BZB84-B11,215 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Configuration | 1 Pair Common Anode | 1 Pair Common Anode | 1 Pair Common Anode | 1 Pair Common Anode | 1 Pair Common Anode | 1 Pair Common Anode | 1 Pair Common Anode | 1 Pair Common Anode | 1 Pair Common Anode | 1 Pair Common Anode |
| Voltage - Zener (Nom) (Vz) | 12 V | 22 V | 62 V | 12 V | 13 V | 15 V | 16 V | 18 V | 10 V | 11 V |
| Tolerance | ±2% | ±2% | ±2% | ±5% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Power - Max | 300 mW | 300 mW | 300 mW | 300 mW | 300 mW | 300 mW | 300 mW | 300 mW | 300 mW | 300 mW |
| Impedance (Max) (Zzt) | 25 Ohms | 55 Ohms | 215 Ohms | 25 Ohms | 30 Ohms | 30 Ohms | 40 Ohms | 45 Ohms | 20 Ohms | 20 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 8 V | 50 nA @ 15.4 V | 50 nA @ 43.4 V | 100 nA @ 8 V | 100 nA @ 8 V | 50 nA @ 10.5 V | 50 nA @ 11.2 V | 50 nA @ 12.6 V | 200 nA @ 7 V | 100 nA @ 8 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | TO-236AB | SOT-23 | SOT-23 | TO-236AB | TO-236AB | TO-236AB | TO-236AB | TO-236AB | TO-236AB | TO-236AB |
