Nexperia USA Inc.-BUK9M35-80EX - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	80 V
Current - Continuous Drain (Id) @ 25°C:	26A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	5V
Rds On (Max) @ Id, Vgs:	31mOhm @ 5A, 10V
Vgs(th) (Max) @ Id:	2.1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	13.5 nC @ 5 V
Vgs (Max):	±10V
Input Capacitance (Ciss) (Max) @ Vds:	1804 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	62W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount

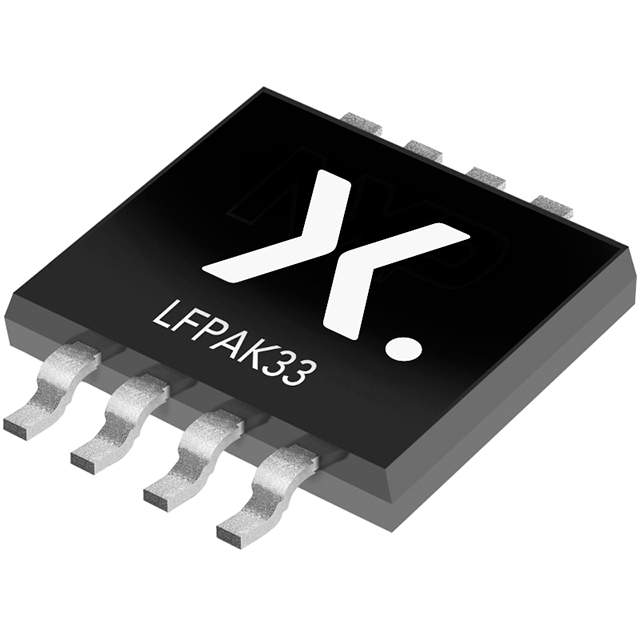

Supplier Device Package:	LFPAK33
Package / Case:	SOT-1210, 8-LFPAK33 (5-Lead)

Nexperia USA Inc. BUK9M35-80EX
