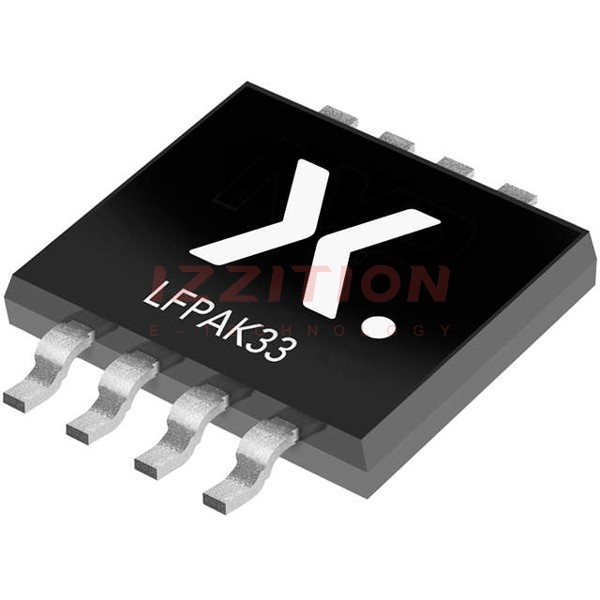

| Part Number | BUK9M15-60EX | BUK9M85-60EX | BUK9M19-60EX | BUK9M12-60EX |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 47A (Ta) | 12.8A (Tc) | 38A (Tc) | 54A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | 5V | 5V | 5V |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 10A, 10V | 73mOhm @ 5A, 10V | 17mOhm @ 10A, 10V | 11mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.45V @ 1mA | 2.1V @ 1mA | 2.1V @ 1mA | 2.1V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 5 V | 4.4 nC @ 5 V | 13.8 nC @ 5 V | - |
| Vgs (Max) | ±10V | ±10V | ±10V | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 2230 pF @ 25 V | 434 pF @ 25 V | 1814 pF @ 25 V | 2769 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 75W (Ta) | 31W (Tc) | 62W (Tc) | 79W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | LFPAK33 | LFPAK33 | LFPAK33 | LFPAK33 |
| Package / Case | SOT-1210, 8-LFPAK33 (5-Lead) | SOT-1210, 8-LFPAK33 (5-Lead) | SOT-1210, 8-LFPAK33 (5-Lead) | SOT-1210, 8-LFPAK33 (5-Lead) |
