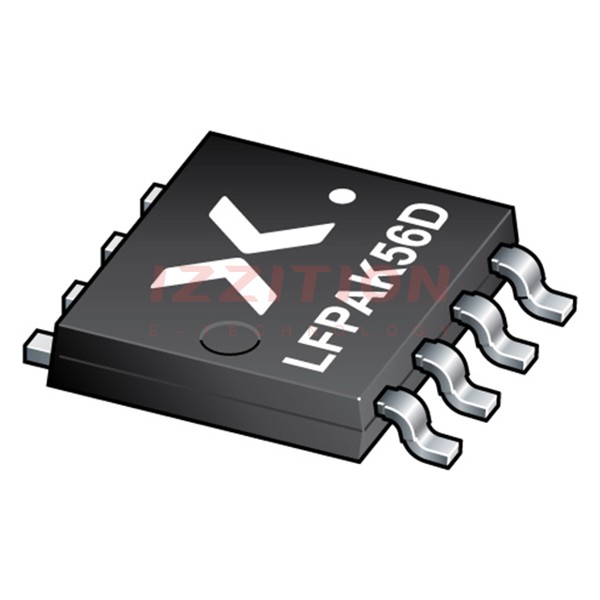

| Part Number | BUK9K20-80EX | BUK9K30-80EX | BUK9K22-80EX |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 80V | 80V | 80V |
| Current - Continuous Drain (Id) @ 25°C | 23A (Ta) | 17A (Ta) | 21A (Ta) |
| Rds On (Max) @ Id, Vgs | 17mOhm @ 10A, 10V | 26mOhm @ 5A, 10V | 19mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 1mA | 2.1V @ 1mA | 2.1V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 25.5nC @ 5V | 17.5nC @ 5V | 23.1nC @ 5V |
| Input Capacitance (Ciss) (Max) @ Vds | 3462pF @ 25V | 2297pF @ 25V | 3115pF @ 25V |
| Power - Max | 68W | 53W | 64W |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-1205, 8-LFPAK56 | SOT-1205, 8-LFPAK56 | SOT-1205, 8-LFPAK56 |
| Supplier Device Package | LFPAK56D | LFPAK56D | LFPAK56D |
