| Part Number | BUK9K12-60EX | BUK9K17-60EX | BUK9K13-60EX | BUK7K12-60EX |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate | Standard |
| Drain to Source Voltage (Vdss) | 60V | 60V | 60V | 60V |
| Current - Continuous Drain (Id) @ 25°C | 35A | 26A | 40A | 40A |
| Rds On (Max) @ Id, Vgs | 10.7mOhm @ 15A, 10V | 15.6mOhm @ 10A, 10V | 12.5mOhm @ 10A, 5V | 9.3mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 1mA | 2.1V @ 1mA | 2.1V @ 1mA | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 24.5nC @ 5V | 16.5nC @ 5V | 22.4nC @ 5V | 10.4nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 3470pF @ 25V | 2223pF @ 25V | 2953pF @ 25V | 617pF @ 25V |
| Power - Max | 68W | 53W | 64W | 68W |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

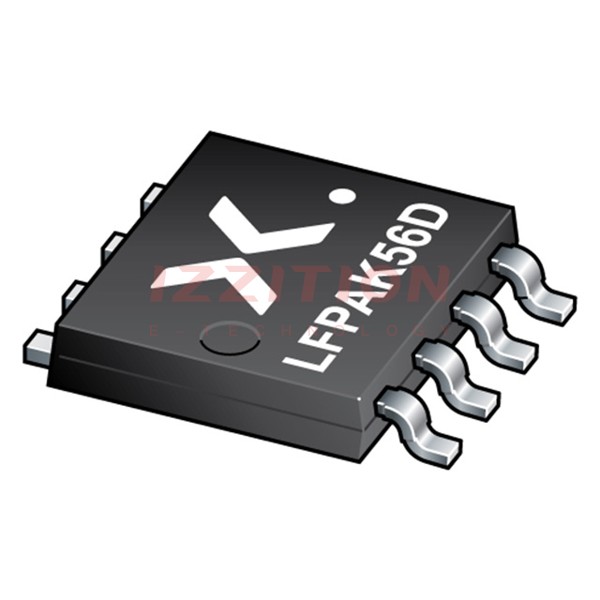

| Package / Case | SOT-1205, 8-LFPAK56 | SOT-1205, 8-LFPAK56 | SOT-1205, 8-LFPAK56 | SOT-1205, 8-LFPAK56 |
| Supplier Device Package | LFPAK56D | LFPAK56D | LFPAK56D | LFPAK56D |
