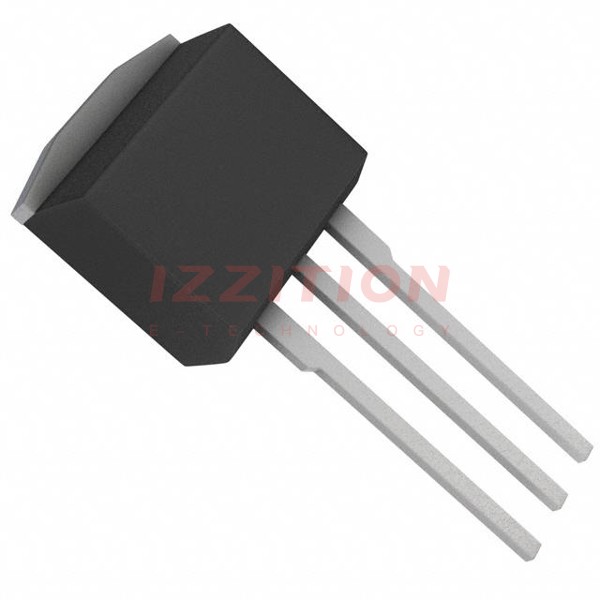

| Part Number | BUK9E06-55B,127 | BUK9E08-55B,127 | BUK9E06-55A,127 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP Semiconductors | Nexperia USA Inc. |
| Product Status | Obsolete | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V | 55 V | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 75A (Tc) | 75A (Tc) | 75A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5.4mOhm @ 25A, 10V | 7mOhm @ 25A, 10V | 5.8mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 1mA | 2V @ 1mA | 2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 60 nC @ 5 V | 45 nC @ 5 V | - |
| Vgs (Max) | ±15V | ±15V | ±15V |
| Input Capacitance (Ciss) (Max) @ Vds | 7565 pF @ 25 V | 5280 pF @ 25 V | 8600 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 258W (Tc) | 203W (Tc) | 300W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | I2PAK | I2PAK | I2PAK |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA |
