Nexperia USA Inc.-BUK9D23-40EX - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	8A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	23mOhm @ 8A, 10V
Vgs(th) (Max) @ Id:	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	17 nC @ 10 V
Vgs (Max):	±15V
Input Capacitance (Ciss) (Max) @ Vds:	637 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	15W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	DFN2020MD-6
Package / Case:	6-UDFN Exposed Pad

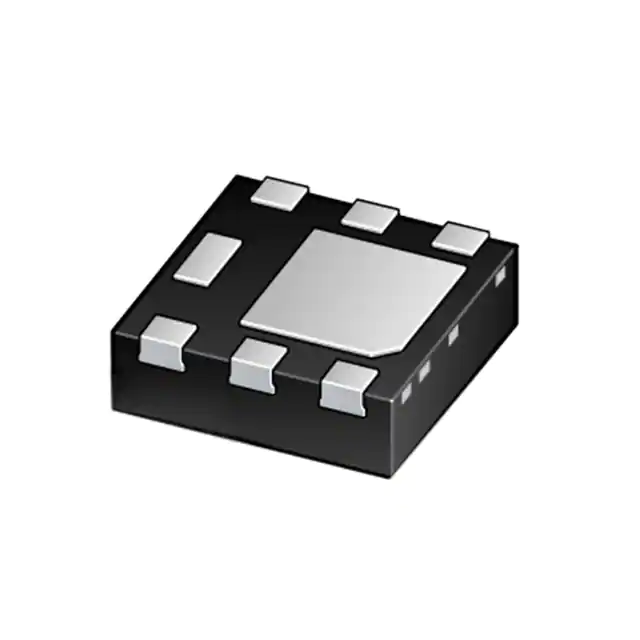

Nexperia USA Inc. BUK9D23-40EX
