Nexperia USA Inc.-BUK9907-40ATC,127 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	75A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	6.5mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±15V
Input Capacitance (Ciss) (Max) @ Vds:	5836 pF @ 25 V
FET Feature:	Temperature Sensing Diode
Power Dissipation (Max):	272W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole

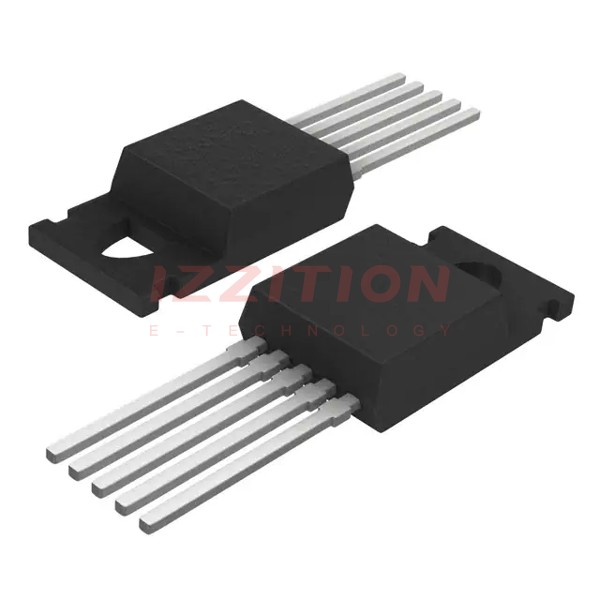

Supplier Device Package:	TO-220-5
Package / Case:	TO-220-5

Nexperia USA Inc. BUK9907-40ATC,127
