| Part Number | BUK7S2R5-40HJ | BUK7S0R5-40HJ | BUK7S1R5-40HJ | BUK7S2R0-40HJ |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 140A (Ta) | 500A (Ta) | 260A (Ta) | 190A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 2.51mOhm @ 25A, 10V | 0.55mOhm @ 25A, 10V | 1.5mOhm @ 25A, 10V | 2mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 3.6V @ 1mA | 3.6V @ 1mA | 3.6V @ 1mA | 3.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 54 nC @ 10 V | 267 nC @ 10 V | 93 nC @ 10 V | 70 nC @ 10 V |
| Vgs (Max) | +20V, -10V | +20V, -10V | +20V, -10V | +20V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 3793 pF @ 25 V | 21162 pF @ 25 V | 6712 pF @ 25 V | 5075 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 135W (Ta) | 375W (Ta) | 242W (Ta) | 183W (Ta) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

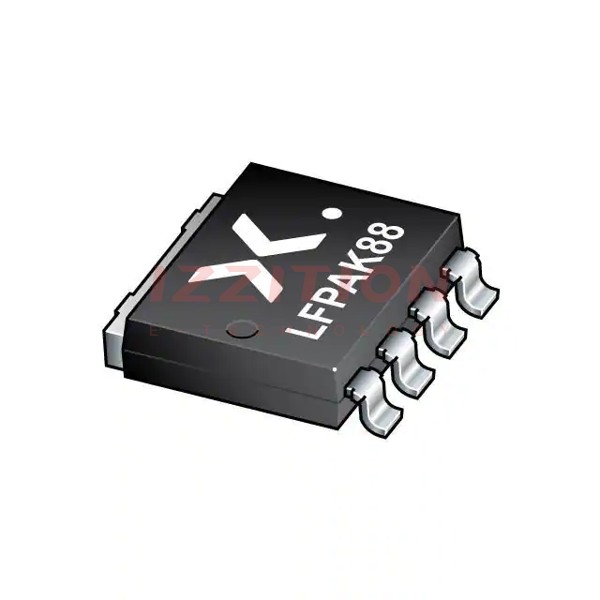

| Supplier Device Package | LFPAK88 (SOT1235) | LFPAK88 (SOT1235) | LFPAK88 (SOT1235) | LFPAK88 (SOT1235) |
| Package / Case | SOT-1235 | SOT-1235 | SOT-1235 | SOT-1235 |
