| Part Number | BUK7M4R3-40HX | BUK7M3R3-40HX |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 95A (Ta) | 80A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 4.3mOhm @ 95A, 10V | 3.3mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | - | 3.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 24 nC @ 10 V | 45 nC @ 10 V |
| Vgs (Max) | - | +20V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 3037 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 90W | 101W (Ta) |
| Operating Temperature | 175°C | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

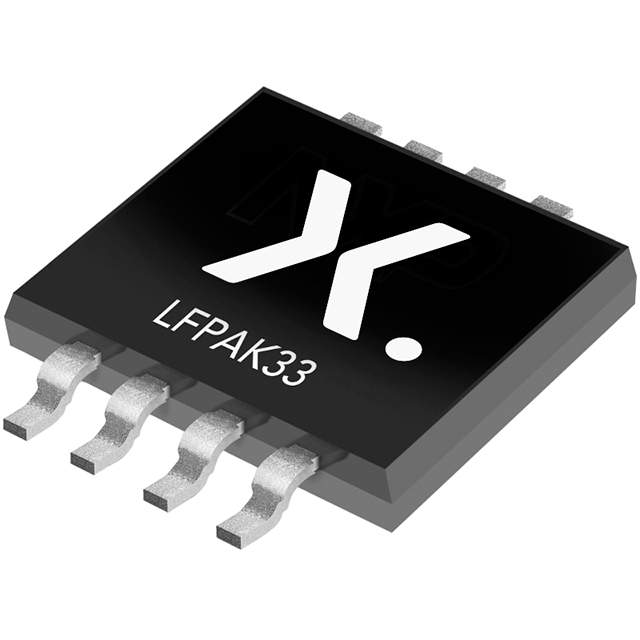

| Supplier Device Package | LFPAK33 | LFPAK33 |
| Package / Case | SOT-1210, 8-LFPAK33 (5-Lead) | SOT-1210, 8-LFPAK33 (5-Lead) |
