Nexperia USA Inc.-BUK7M20-40HX - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	25A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	20mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	3.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	10.2 nC @ 10 V
Vgs (Max):	+20V, -10V
Input Capacitance (Ciss) (Max) @ Vds:	598 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	38W (Ta)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount

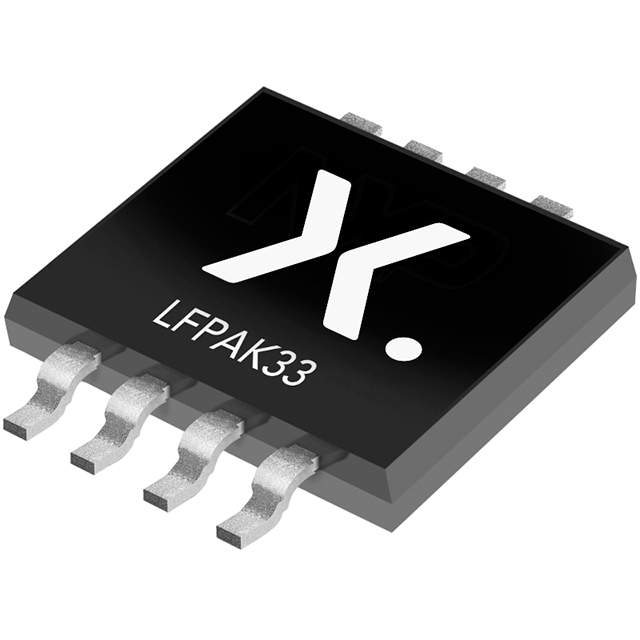

Supplier Device Package:	LFPAK33
Package / Case:	SOT-1210, 8-LFPAK33 (5-Lead)

Nexperia USA Inc. BUK7M20-40HX
