| Part Number | BUK7M17-80EX | BUK7M27-80EX |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 43A (Tc) | 30A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 17mOhm @ 10A, 10V | 27mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 29.6 nC @ 10 V | 19.5 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2031 pF @ 25 V | 1306 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 79W (Tc) | 62W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

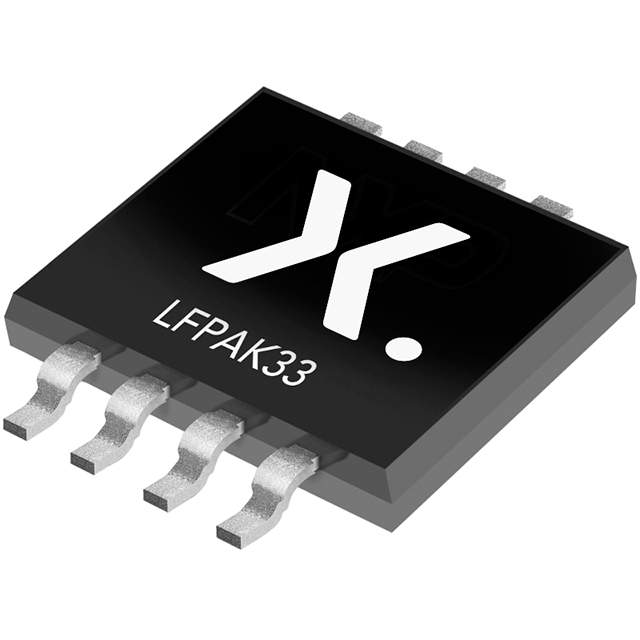

| Supplier Device Package | LFPAK33 | LFPAK33 |
| Package / Case | SOT-1210, 8-LFPAK33 (5-Lead) | SOT-1210, 8-LFPAK33 (5-Lead) |
