Please send RFQ , we will respond immediately.

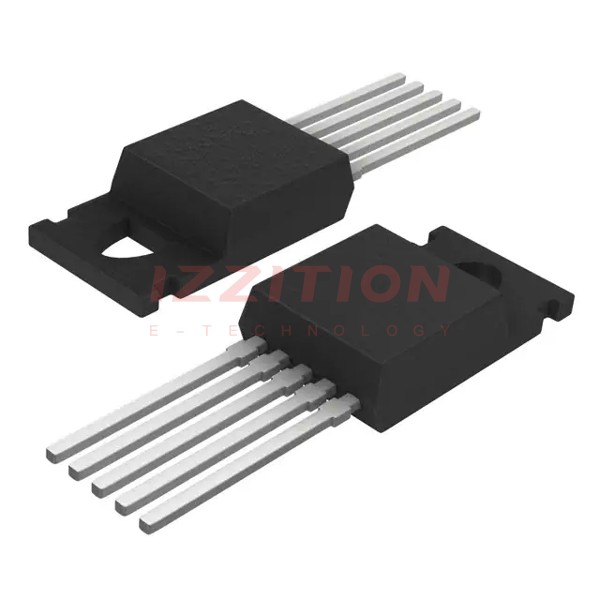

| Part Number | BUK7908-40AIE,127 | BUK7908-40AIE127 | BUK7905-40AIE,127 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 75A (Tc) | 75A (Tc) | 75A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 50A, 10V | 8mOhm @ 50A, 10V | 5mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA | 4V @ 1mA | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 84 nC @ 10 V | 84 nC @ 10 V | 127 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3140 pF @ 25 V | 3140 pF @ 25 V | 5000 pF @ 25 V |
| FET Feature | Current Sensing | Current Sensing | Current Sensing |
| Power Dissipation (Max) | 221W (Tc) | 221W (Tc) | 272W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220-5 | TO-220-5 | TO-220-5 |
| Package / Case | TO-220-5 | TO-220-5 | TO-220-5 |
