Nexperia USA Inc.-BUK7509-55A,127-NEX - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	55 V
Current - Continuous Drain (Id) @ 25°C:	75A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	9mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	62 nC @ 0 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	3271 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	211W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole

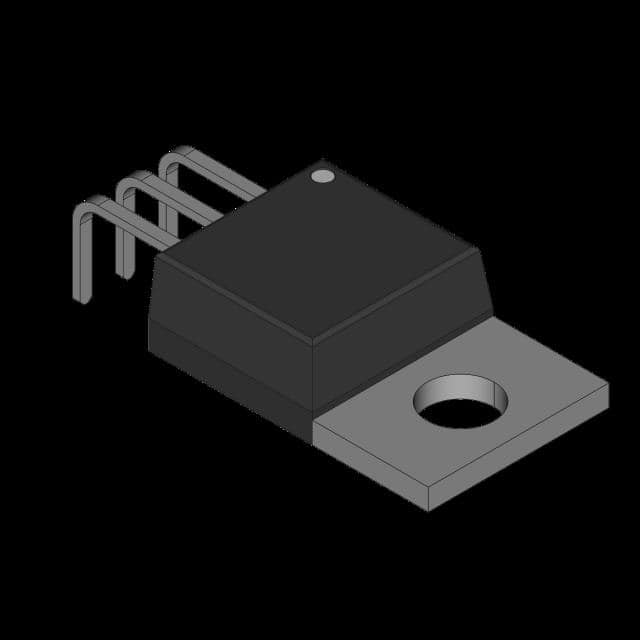

Supplier Device Package:	TO-220AB
Package / Case:	TO-220-3

Nexperia USA Inc. BUK7509-55A,127-NEX
