Nexperia USA Inc.-BUK714R1-40BT,118 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	75A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	4.1mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	83 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	6808 pF @ 25 V
FET Feature:	Temperature Sensing Diode
Power Dissipation (Max):	272W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D2PAK

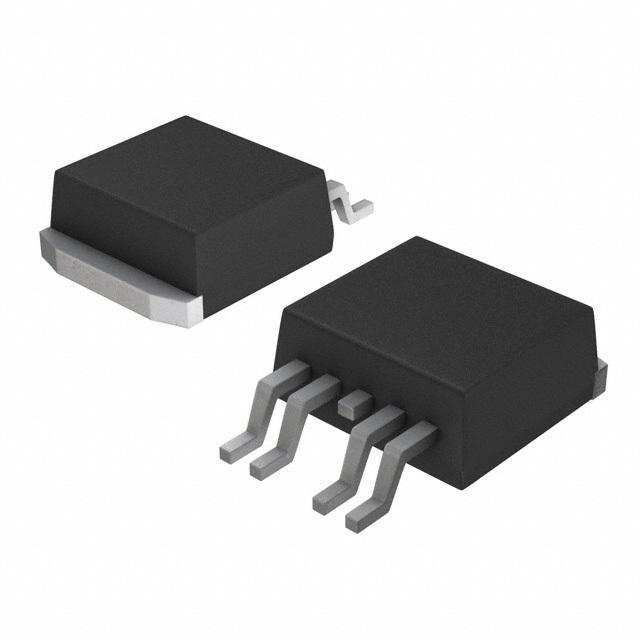

Package / Case:	TO-263-5, D²Pak (4 Leads + Tab), TO-263BB

Nexperia USA Inc. BUK714R1-40BT,118
