Nexperia USA Inc.-BUK6D77-60EX - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	3.4A (Ta), 10.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	77mOhm @ 3.4A, 10V
Vgs(th) (Max) @ Id:	2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	9.2 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	305 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	2W (Ta), 18.8W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount

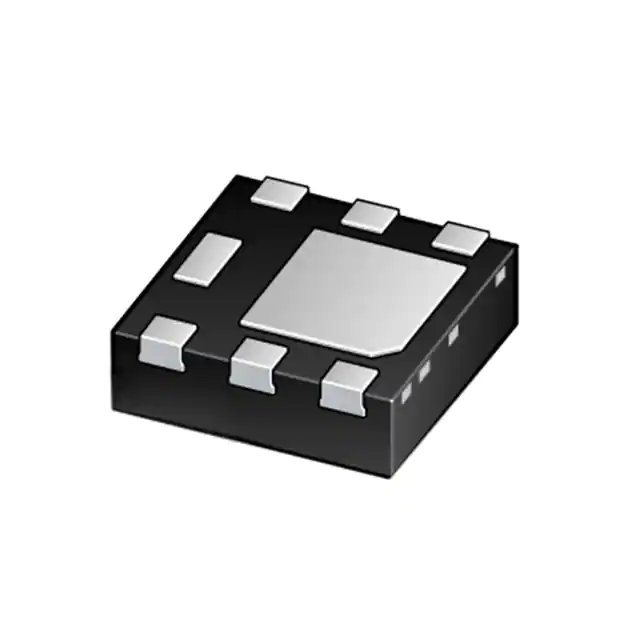

Supplier Device Package:	DFN2020MD-6
Package / Case:	6-UDFN Exposed Pad

Nexperia USA Inc. BUK6D77-60EX
