Nexperia USA Inc.-BSS87,115 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	200 V
Current - Continuous Drain (Id) @ 25°C:	400mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	3Ohm @ 400mA, 10V
Vgs(th) (Max) @ Id:	2.8V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	120 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	580mW (Ta), 12.5W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-89
Package / Case:	TO-243AA

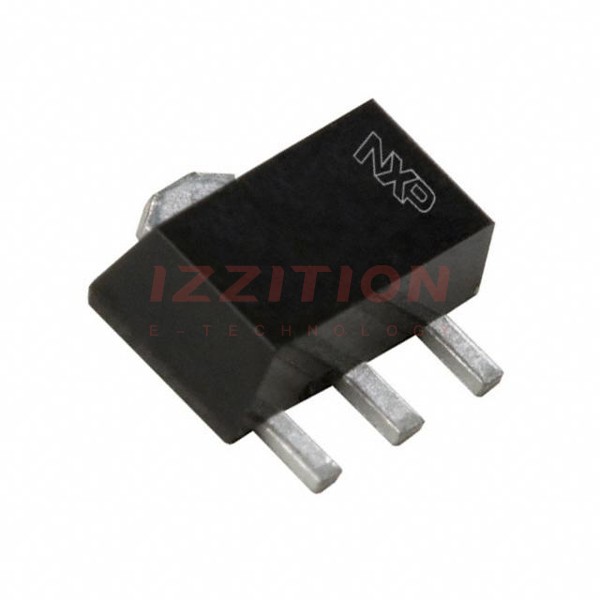

Nexperia USA Inc. BSS87,115
