Nexperia USA Inc.-BCX56TX - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	BCX56TX	BCX53TX	BCX56TA	BCX56TF
Manufacturer	Nexperia USA Inc.	Nexperia USA Inc.	Diodes Incorporated	Nexperia USA Inc.
Product Status	Active	Active	Active	Active
Transistor Type	NPN	PNP	NPN	NPN
Current - Collector (Ic) (Max)	1 A	1 A	1 A	1 A
Voltage - Collector Emitter Breakdown (Max)	80 V	80 V	80 V	80 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	63 @ 150mA, 2V	63 @ 150mA, 2V	40 @ 150mA, 2V	63 @ 150mA, 2V
Power - Max	500 mW	500 mW	1 W	500 mW
Frequency - Transition	155MHz	140MHz	150MHz	155MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	-65°C ~ 150°C (TJ)	150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	TO-243AA	TO-243AA	TO-243AA	TO-243AA
Supplier Device Package	SOT-89	SOT-89	SOT-89-3	SOT-89

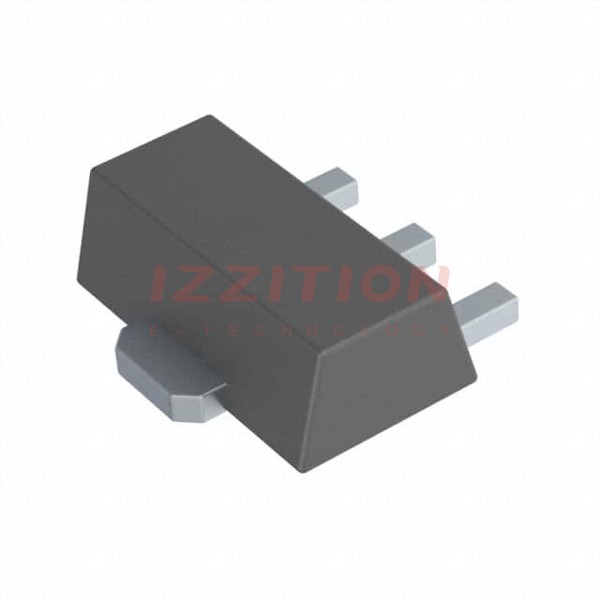

Nexperia USA Inc. BCX56TX

Transistor Type:	NPN
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	63 @ 150mA, 2V
Power - Max:	500 mW
Frequency - Transition:	155MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-243AA
Supplier Device Package:	SOT-89
