Nexperia USA Inc.-BCX56-16TX - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	BCX56-16TX	BCX53-16TX	BCX56-10TX	BCX56-16TF
Manufacturer	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.
Product Status	Active	Active	Active	Active
Transistor Type	NPN	PNP	NPN	NPN
Current - Collector (Ic) (Max)	1 A	1 A	1 A	1 A
Voltage - Collector Emitter Breakdown (Max)	80 V	80 V	80 V	80 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 2V	100 @ 150mA, 2V	63 @ 150mA, 2V	100 @ 150mA, 2V
Power - Max	500 mW	500 mW	500 mW	500 mW
Frequency - Transition	155MHz	140MHz	155MHz	155MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	TO-243AA	TO-243AA	TO-243AA	TO-243AA
Supplier Device Package	SOT-89	SOT-89	SOT-89	SOT-89

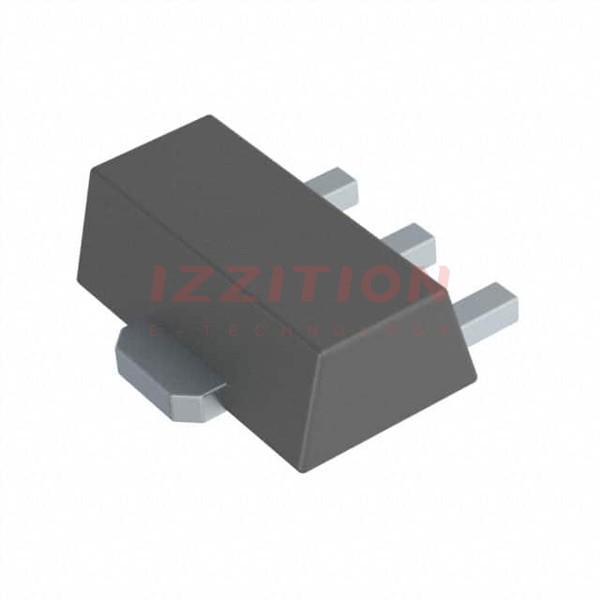

Nexperia USA Inc. BCX56-16TX

Transistor Type:	NPN
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	100 @ 150mA, 2V
Power - Max:	500 mW
Frequency - Transition:	155MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-243AA
Supplier Device Package:	SOT-89
