Nexperia USA Inc.-BCX56-10TF - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	BCX56-10TF	BCX56-16TF	BCX56-10TX	BCX53-10TF	BCX54-10TF	BCX55-10TF
Manufacturer	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.
Product Status	Active	Active	Active	Active	Active	Active
Transistor Type	NPN	NPN	NPN	PNP	NPN	NPN
Current - Collector (Ic) (Max)	1 A	1 A	1 A	1 A	1 A	1 A
Voltage - Collector Emitter Breakdown (Max)	80 V	80 V	80 V	80 V	45 V	60 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	63 @ 150mA, 2V	100 @ 150mA, 2V	63 @ 150mA, 2V	63 @ 150mA, 2V	63 @ 150mA, 2V	63 @ 150mA, 2V
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Frequency - Transition	155MHz	155MHz	155MHz	140MHz	-	-
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	TO-243AA	TO-243AA	TO-243AA	TO-243AA	TO-243AA	TO-243AA
Supplier Device Package	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89

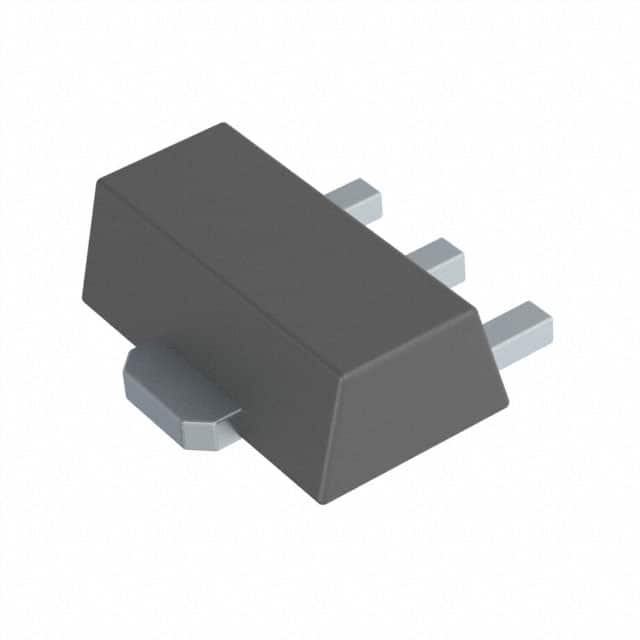

Nexperia USA Inc. BCX56-10TF

Transistor Type:	NPN
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	63 @ 150mA, 2V
Power - Max:	500 mW
Frequency - Transition:	155MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-243AA
Supplier Device Package:	SOT-89
