Nexperia USA Inc.-BCX53TX - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	BCX53TX	BCX56TX	BCX53TA	BCX53TF
Manufacturer	Nexperia USA Inc.	Nexperia USA Inc.	Diodes Incorporated	Nexperia USA Inc.
Product Status	Active	Active	Active	Active
Transistor Type	PNP	NPN	PNP	PNP
Current - Collector (Ic) (Max)	1 A	1 A	1 A	1 A
Voltage - Collector Emitter Breakdown (Max)	80 V	80 V	80 V	80 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	63 @ 150mA, 2V	63 @ 150mA, 2V	40 @ 150mA, 2V	63 @ 150mA, 2V
Power - Max	500 mW	500 mW	1 W	500 mW
Frequency - Transition	140MHz	155MHz	150MHz	140MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	-65°C ~ 150°C (TJ)	150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	TO-243AA	TO-243AA	TO-243AA	TO-243AA
Supplier Device Package	SOT-89	SOT-89	SOT-89-3	SOT-89

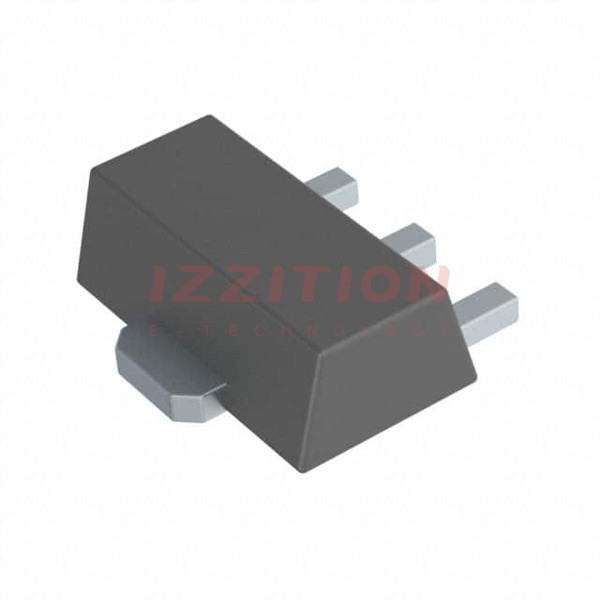

Nexperia USA Inc. BCX53TX

Transistor Type:	PNP
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	63 @ 150mA, 2V
Power - Max:	500 mW
Frequency - Transition:	140MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-243AA
Supplier Device Package:	SOT-89
