Nexperia USA Inc.-BCX53TF - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	BCX53TF	BCX56TF	BCX53TX	BCX54TF	BCX55TF	BCX51TF	BCX52TF	BCX53TA
Manufacturer	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Diodes Incorporated
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Transistor Type	PNP	NPN	PNP	NPN	NPN	PNP	PNP	PNP
Current - Collector (Ic) (Max)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Voltage - Collector Emitter Breakdown (Max)	80 V	80 V	80 V	45 V	60 V	45 V	60 V	80 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	63 @ 150mA, 2V	63 @ 150mA, 2V	63 @ 150mA, 2V	63 @ 150mA, 2V	63 @ 150mA, 2V	63 @ 150mA, 2V	63 @ 150mA, 2V	40 @ 150mA, 2V
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	1 W
Frequency - Transition	140MHz	155MHz	140MHz	-	-	-	-	150MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	TO-243AA	TO-243AA	TO-243AA	TO-243AA	TO-243AA	TO-243AA	TO-243AA	TO-243AA
Supplier Device Package	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89	SOT-89-3

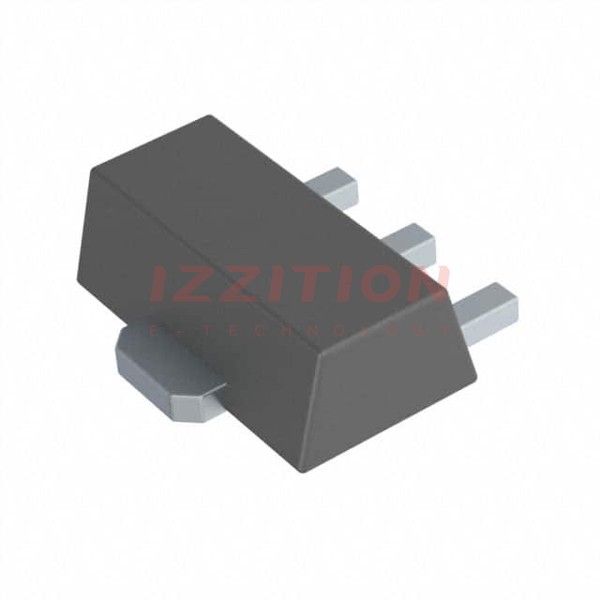

Nexperia USA Inc. BCX53TF

Transistor Type:	PNP
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	63 @ 150mA, 2V
Power - Max:	500 mW
Frequency - Transition:	140MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-243AA
Supplier Device Package:	SOT-89
