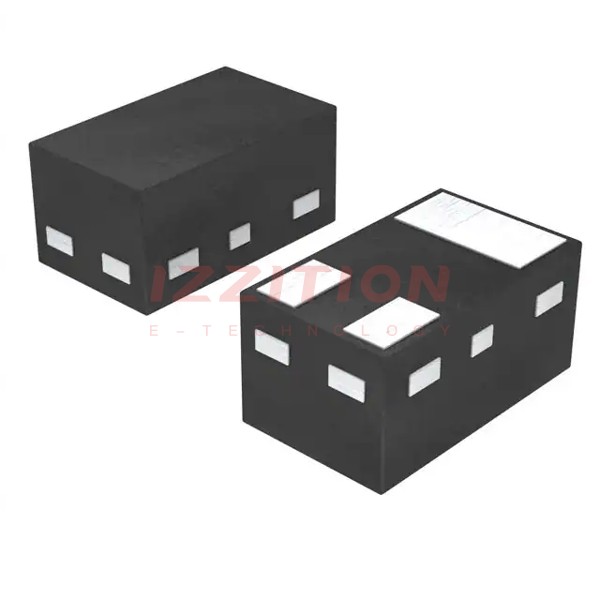

| Part Number | BC847AMB,315 | BC847BMB,315 | BC847AM,315 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 45 V | 45 V | 45 V |
| Vce Saturation (Max) @ Ib, Ic | 200mV @ 500µA, 10mA | 400mV @ 5mA, 100mA | 400mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max) | 15nA (ICBO) | 15nA (ICBO) | 15nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 110 @ 2mA, 5V | 200 @ 2mA, 5V | 110 @ 2mA, 5V |
| Power - Max | 250 mW | 250 mW | 250 mW |
| Frequency - Transition | 100MHz | 100MHz | 100MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-XFDFN | 3-XFDFN | SC-101, SOT-883 |
| Supplier Device Package | DFN1006B-3 | DFN1006B-3 | SOT-883 |
