| Part Number | BC807RAZ | BC817RAZ |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active |
| Transistor Type | 2 PNP (Dual) | 2 NPN (Dual) |
| Current - Collector (Ic) (Max) | 500mA | 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 45V | 45V |
| Vce Saturation (Max) @ Ib, Ic | 700mV @ 50mA, 500mA | 700mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 100mA, 1V | 160 @ 100mA, 1V |
| Power - Max | 350mW | 350mW |
| Frequency - Transition | 80MHz | 100MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

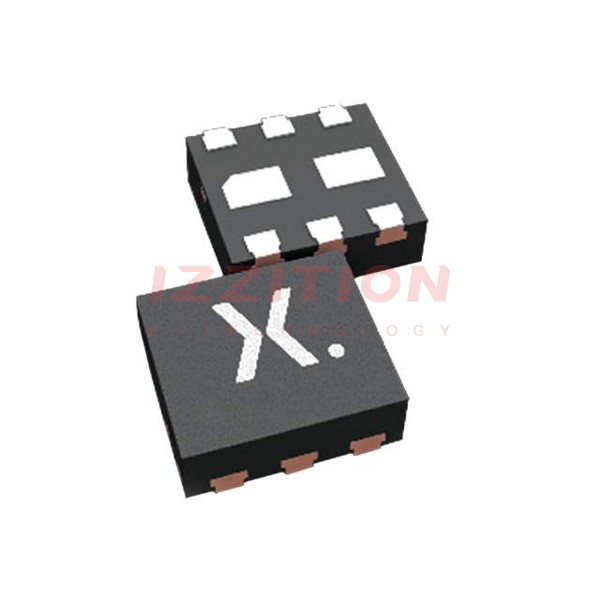

| Package / Case | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad |
| Supplier Device Package | DFN1412-6 | DFN1412-6 |
