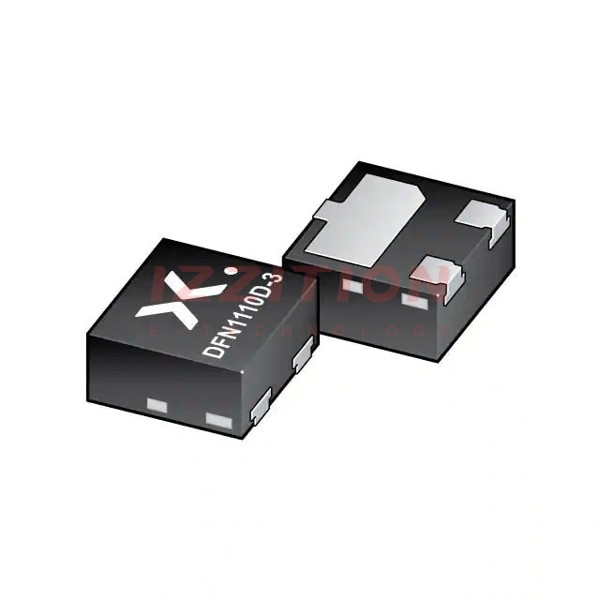

| Part Number | BC807-25QB-QZ | BC807-25QC-QZ | BC807-25QBH-QZ |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| Transistor Type | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 500 mA | 500 mA | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 45 V | 45 V | 45 V |
| Vce Saturation (Max) @ Ib, Ic | 700mV @ 50mA, 500mA | 700mV @ 50mA, 500mA | 700mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 100mA, 1V | 160 @ 100mA, 1V | 160 @ 100mA, 1V |
| Power - Max | 350 mW | 380 mW | 420 mW |
| Frequency - Transition | 80MHz | 80MHz | 80MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 175°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Package / Case | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad |
| Supplier Device Package | DFN1110D-3 | DFN1412D-3 | DFN1110D-3 |
