BAW56SRAZ
  • Share:

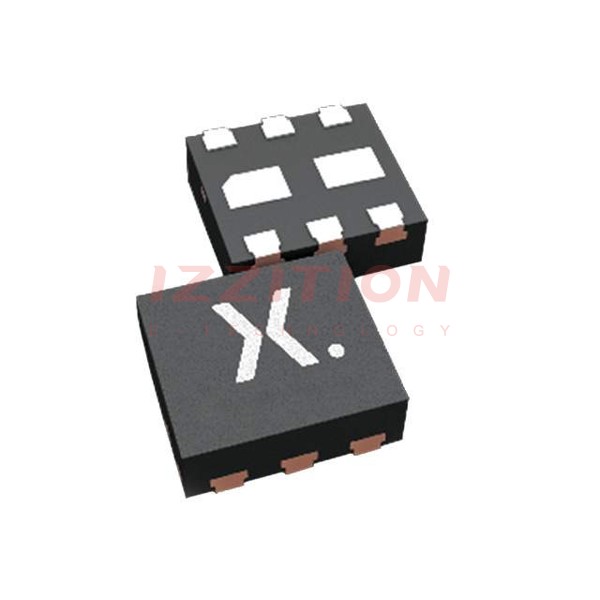

Nexperia USA Inc. BAW56SRAZ

Manufacturer No:
BAW56SRAZ
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Datasheet:
BAW56SRAZ Datasheet
ECAD Model:
-
Description:
DIODE ARRAY GP 90V 375MA 6DFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Diode Configuration:2 Pair Common Cathode
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):90 V
Current - Average Rectified (Io) (per Diode):375mA (DC)
Voltage - Forward (Vf) (Max) @ If:1.25 V @ 150 mA
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):4 ns
Current - Reverse Leakage @ Vr:500 nA @ 80 V
Operating Temperature - Junction:150°C (Max)
Mounting Type:Surface Mount
Package / Case:6-XFDFN Exposed Pad
Supplier Device Package:DFN1412-6
0 Remaining View Similar

In Stock

$0.40
1,786

Please send RFQ , we will respond immediately.
