Please send RFQ , we will respond immediately.
| Part Number | BAW56S/DG/B2,115 | BAW56S/DG/B2,135 | BAW56W/DG/B2,115 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 2 Pair Common Anode | 2 Pair Common Anode | 1 Pair Common Anode |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 90 V | 90 V | 90 V |
| Current - Average Rectified (Io) (per Diode) | 250mA (DC) | 250mA (DC) | 150mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA | 1.25 V @ 150 mA | 1.25 V @ 150 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns | 4 ns | 4 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 80 V | 500 nA @ 80 V | 500 nA @ 80 V |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

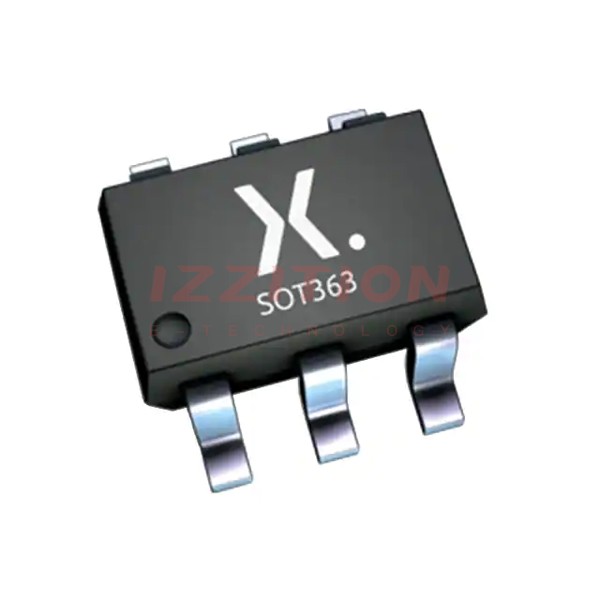

| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | SC-70, SOT-323 |
| Supplier Device Package | 6-TSSOP | 6-TSSOP | SOT-323 |
